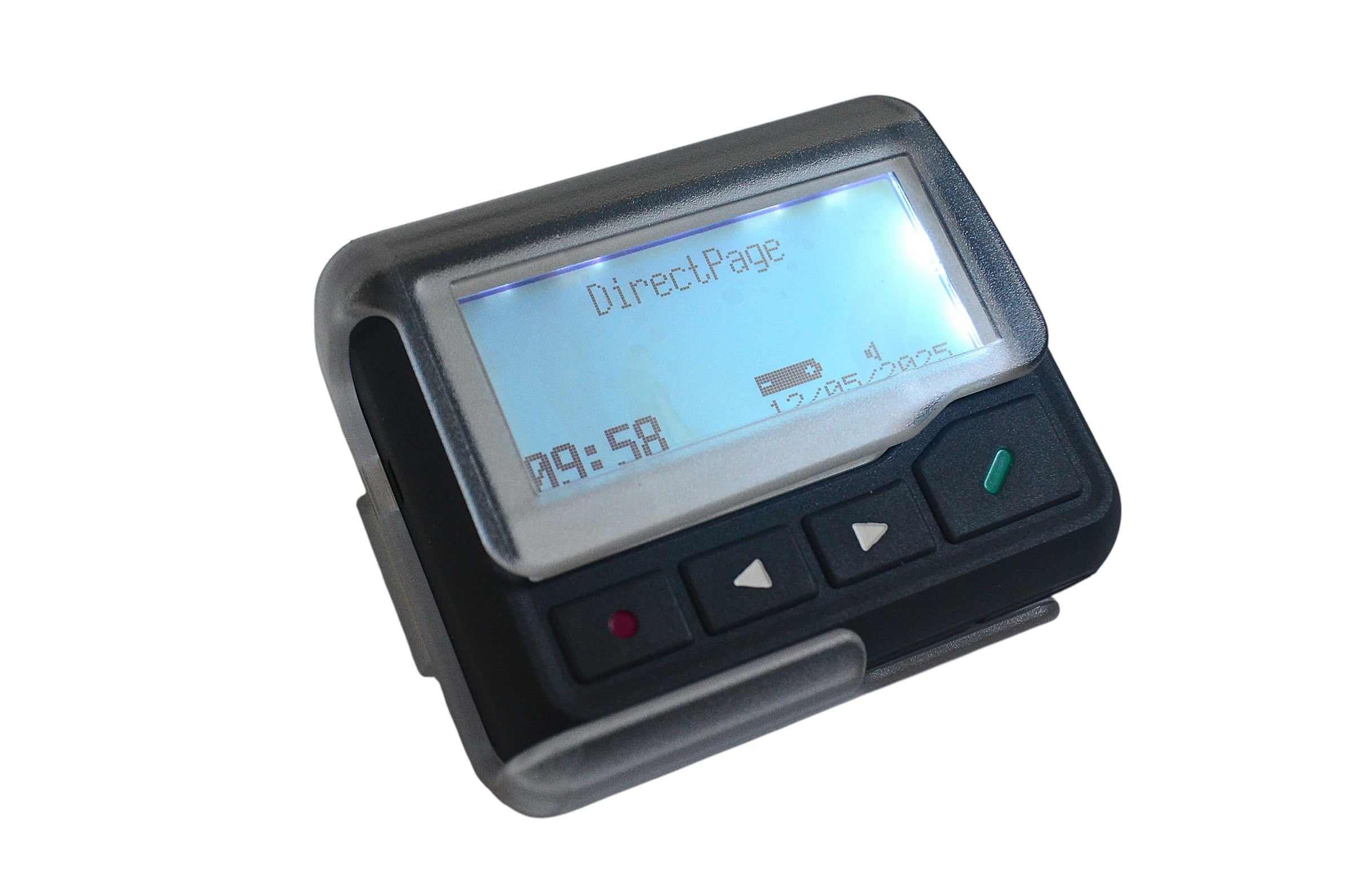

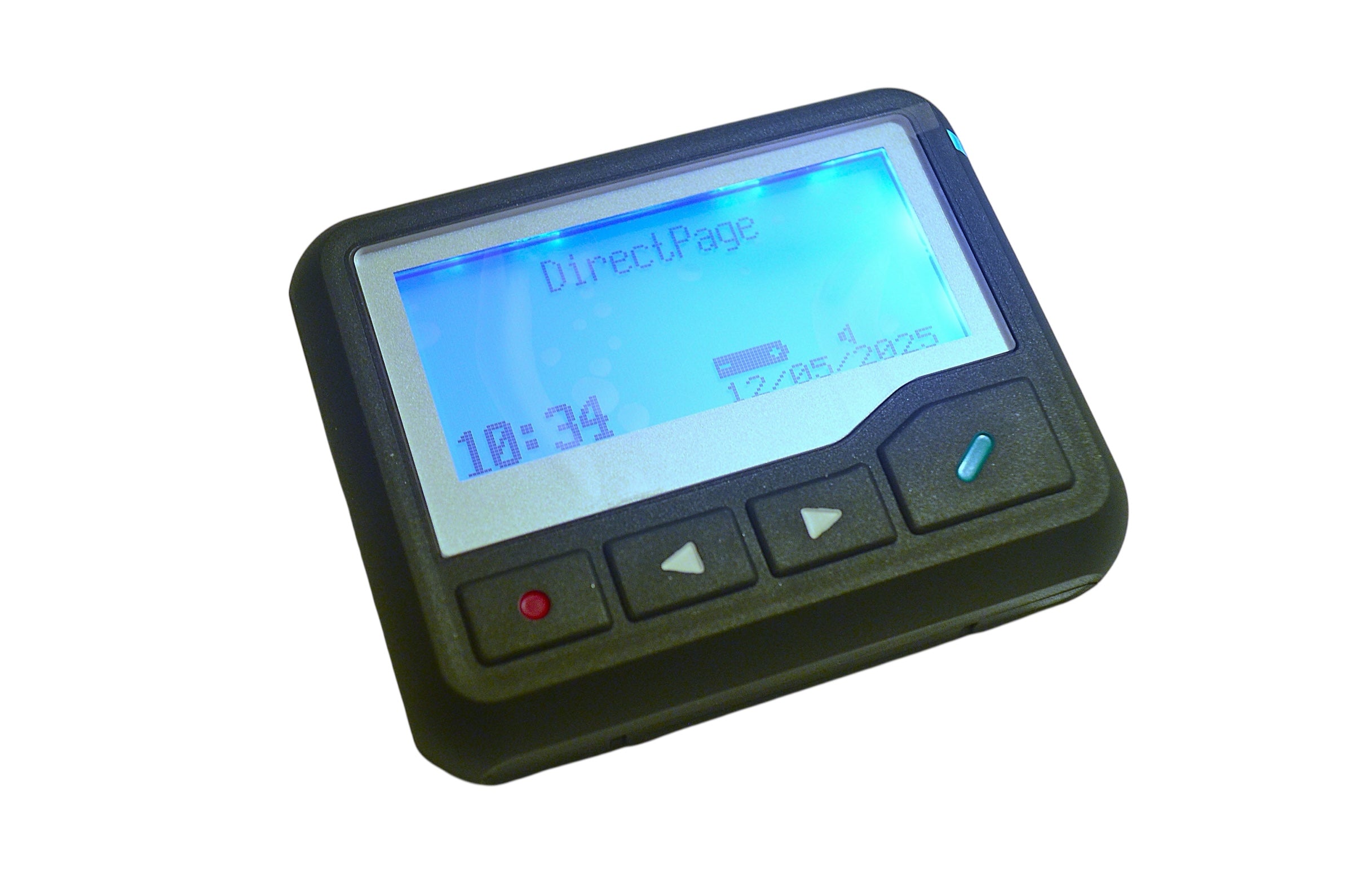

DirectPage W8001 Brand New 4 line / 8 line IP67 Alphanumeric Pager
The DirectPage W8001 IP67 Alphanumeric Pager available on the 450-470mhz UHF Band features a large display with a blue backlight for easier reading in dim / dark settings.
-
Features: POCSAG Paging Format
- Display Format: 4-Line or 8-Line
- 4 Different Tone Alerts Cap Code Selectable
- Melody Alert for 8 Musical Tones
- Tone Alert Time 12-16 Seconds
- Back Light can be Manually On, for Dim Environments
- In Range Indicator
- Low Voltage Alert
- Time and Date Display 12 / 24 Hour Format
- Time and Date Stamping
- Priority Call Alert
- Alarm Function for Preset Time
- Unread Message Reminder (ICON Flashing)
- Duplicate Message Indication
- Vibration Alert to Activate with each Alert
- Silent Alert to RX without Tone or Vibration
- Message Deletion and Delete All Function- Message Protection for 16 Messages
- MSG Storage Capacity: 19 Personal, 12 Mail Drop -
- Cap Code: Up to 8 Cap Codes
- Baud Rate: 512, 1200 and 2400
- Durable: Built Tough for Demanding Environments
- IP67 Rated: Indication for Dustproof and Waterproof
- Frequency Bands: UHF 450-470 MHz Stock Pager
One UHF Band for 450 to 470 MHz)- Frequency Bands: VHF Pagers are Special Order
VHF Band Splits Range between 138-174 MHz
- Hand Programmable or with the optional W8001 programmer available separately and is included free of charge upon request when purchasing 20+ pagers.

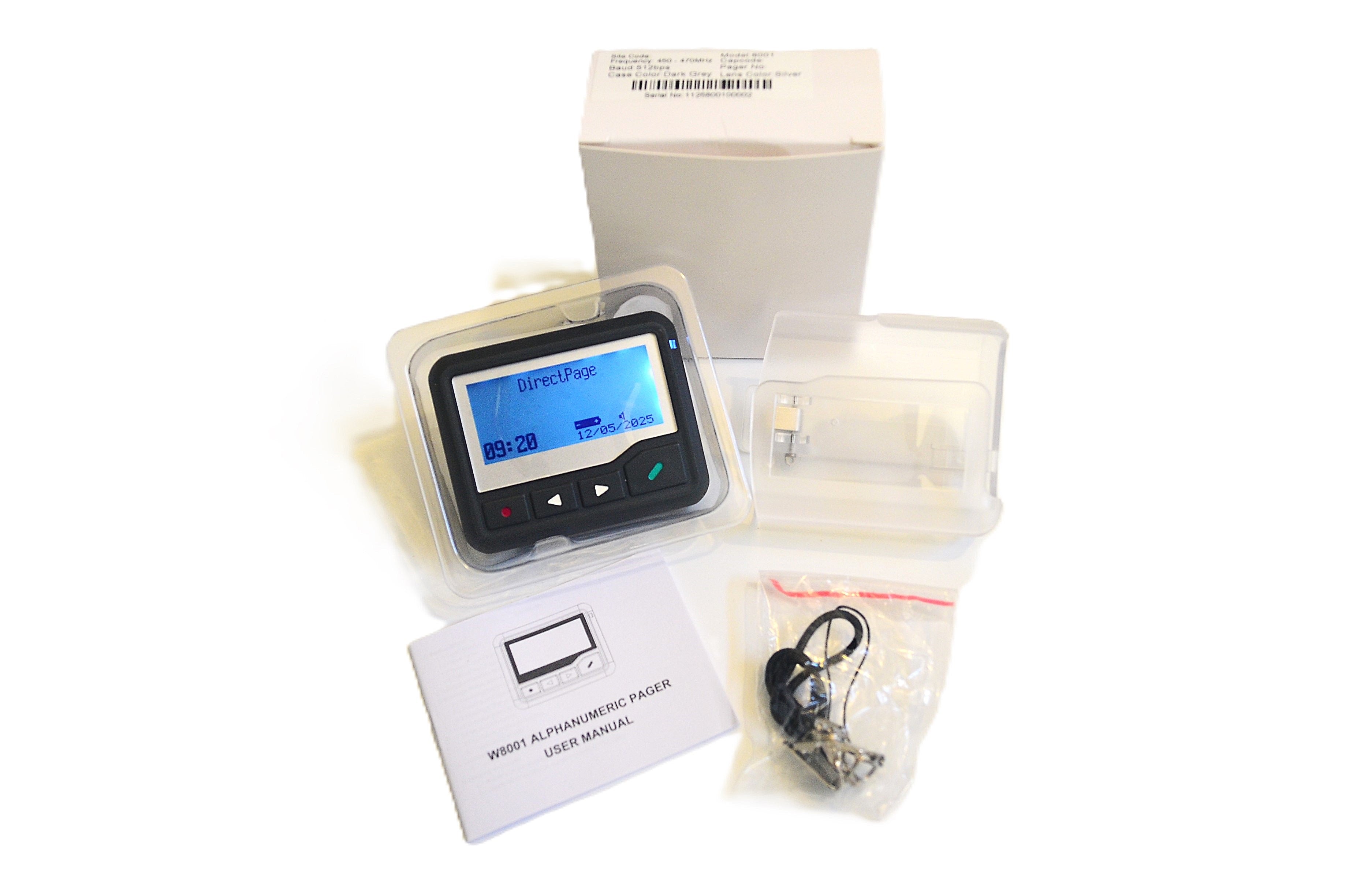

- Pager Includes:

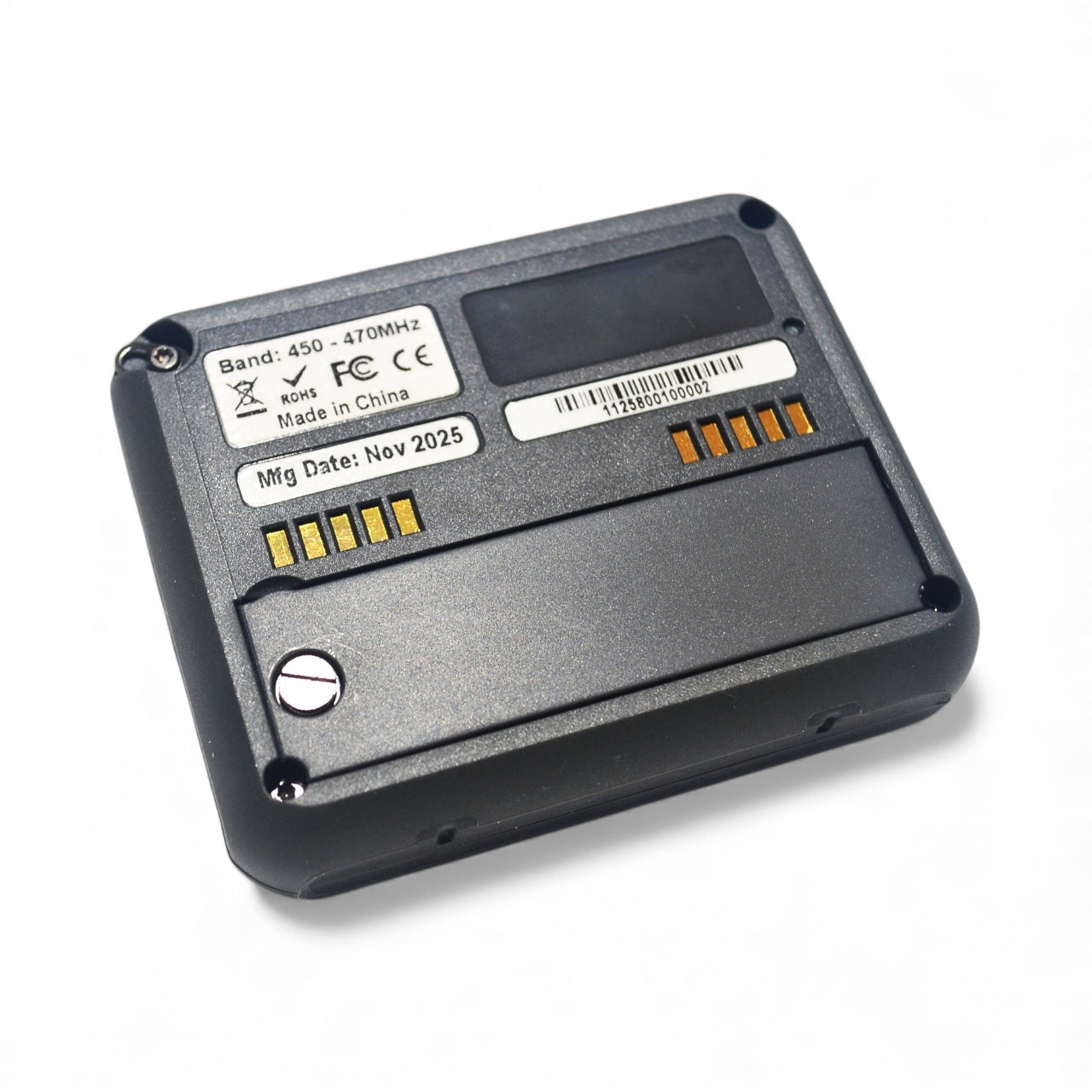

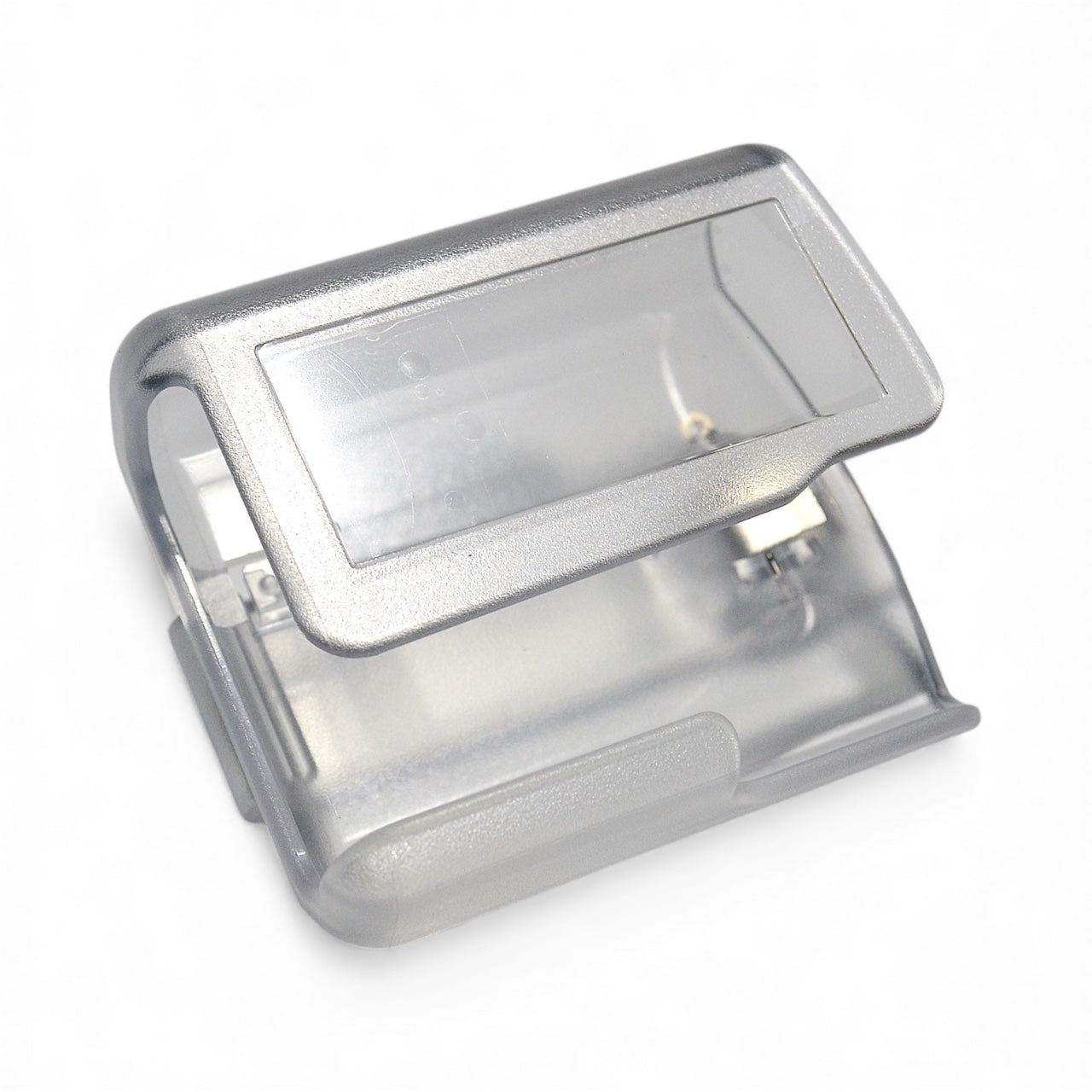

Holster with Belt Clip and AA alkaline Battery. The battery door is secured by a standard flat head screw which helps prevent accidental loss of the battery door. -
Specifications:
- Display Format: 4 Lines or 8 Lines Alphanumeric
- Operating Temperature: -10 C to 40 C 95% (at 40 C)
- Storage Temperature: -10 C to 70 C, 95% (at 40 C)
- Alert Tone Loudness: >75 dB 10cm, Freq 2731 Hz
- Weight: 135 Grams with Battery
- Battery Type: One Alkaline AA Battery at 1.5v
Or One Chargeable AA Battery at 1.5v
- Battery Life: 512,2000 HRs, 1200,1600 HRs (Alkaline)
- Operating Voltage: 1.0V Min.
- Dimensions: 80 x 64 x 23 mm (Without Holster) - RX Sensitivity: 512 5uV/m, 1200 7uV/m, 2400 10uV/m
Selectivity: 60 dB
Spurious Rejection: >/= 60 dB (138-284 MHz)
>/= 50 dB (405-932 MHz)
Image Rejection: >/= 50 dB (138-480 MHz)
>/= 40 dB (928-932 MHz)
Freq Stability: +/- 10ppm (138-284), +/- 5ppm (406-480)
Frequency Deviation: +/- 4.5 KHz
